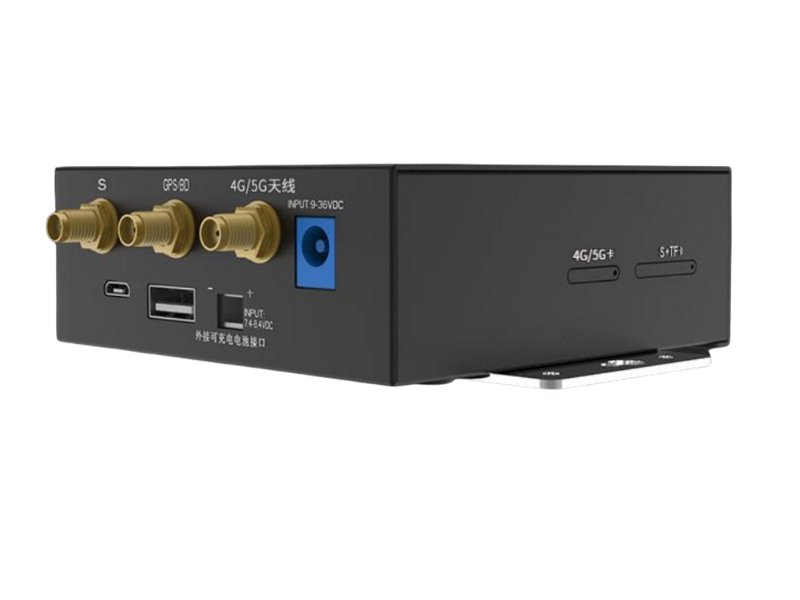

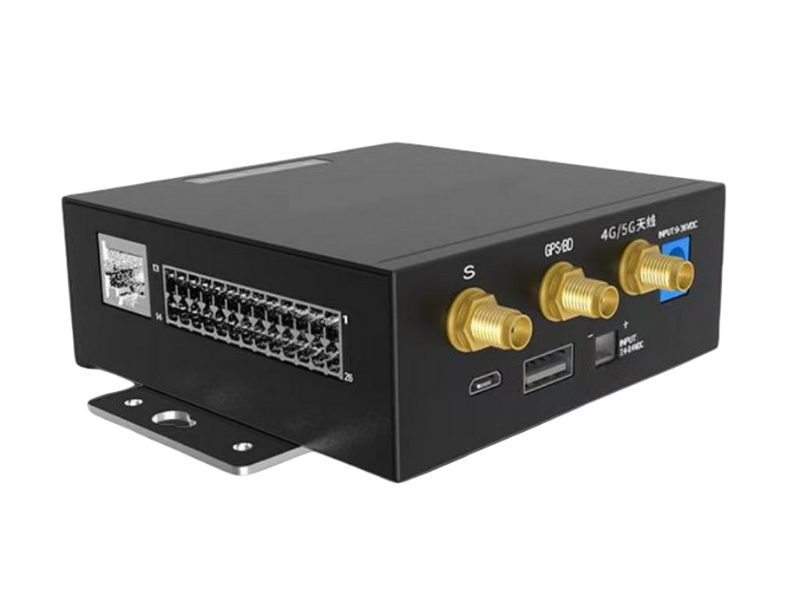

Dual-Mode Satellite IoT Terminal ZS-M1
Network: Tiantong Satellite + 4G/5G Cellular
Function: MSM and Data transmission
Design:Watchdog
Positioning : GPS & BeiDou
Size : 90×90×34.7mm/3.54*3.52*1.37inch
Material:Metal
ZINSAR ZS-M1 enables 24/7 tracking of ships/ containers/ vehicles and also fixed pipes and tanks via satellite-cellular hybrid. External power supply. Multiple protocols. Monitor location/temp/humidity beyond cellular zones.
PRODUCT SPECIFICATIONS:
| Parameter | Indicator Description |
| Product Name | ZINSAR Dual-Mode Satellite IOT Terminal |
| Model No. | ZS-M1 |
| Dimension | 90×90×34.7mm |
| Network | Tiantong/Cellular 4G |
| Terminal Type |
IOT terminal (Single satellite or single cellular mode optional) |
| SIM Card | Satellite/4G,5G:4FF SIM Card |
| Body Memory | 4GB RAM+256MB ROM |
| Antenna | External& removable |
| Body material | Metal |
| Power Input | DC 9V-36V |
| Battery | Reserved external interface |
| T-flash Card | Support |
| Navigation | GPS/BEIDOU |
| LED Light | 4 LED two-color indicators |
| Control Mode | Remote+serial control |

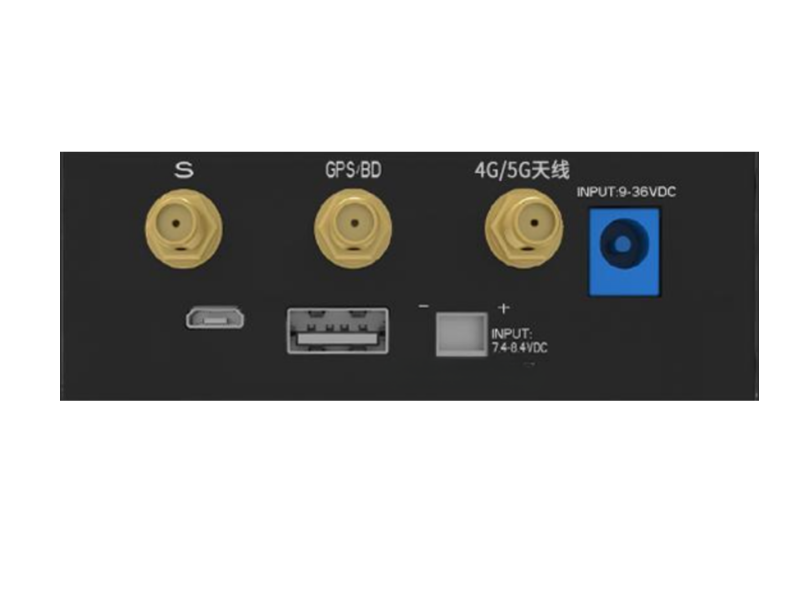

| External Interface |
Host USB port, can
support multi-interfaces, RJ45, external battery interface,Micro USB, Serial port |
| Packing list | Host, Adapter, Quike guide, Antenna |
