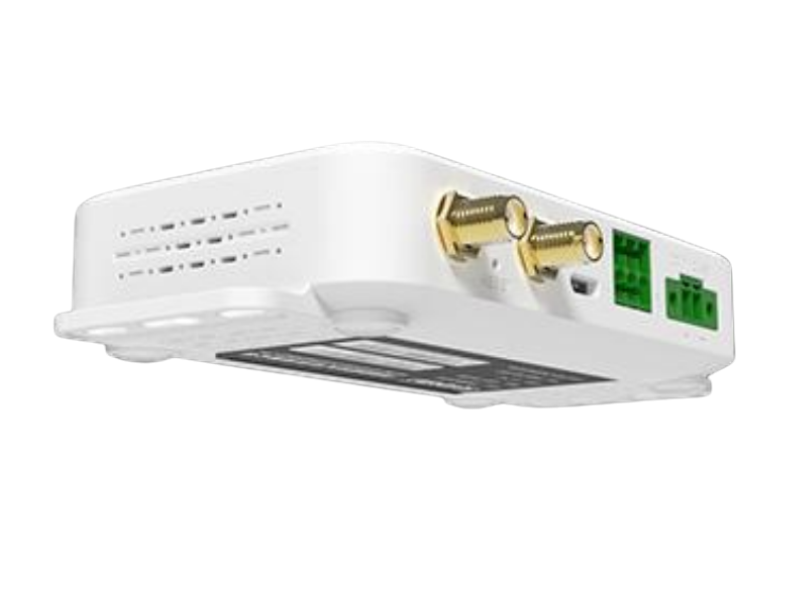

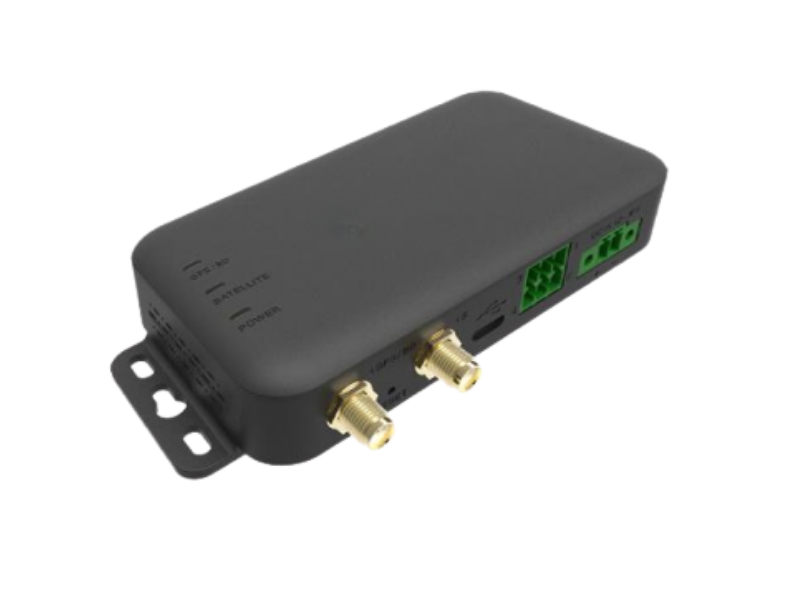

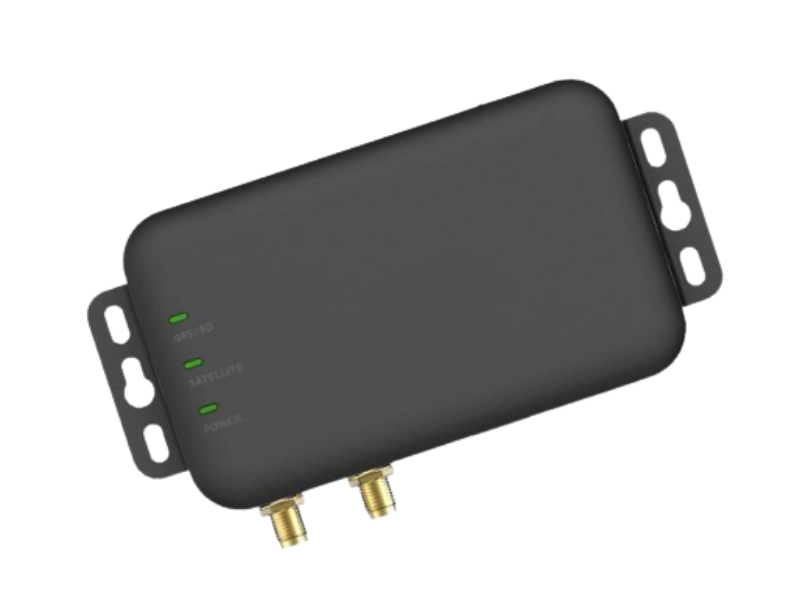

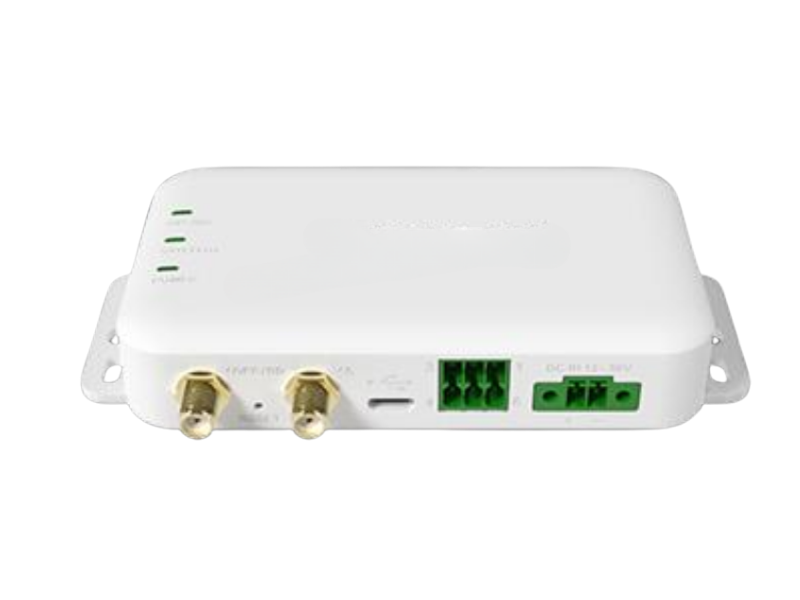

Tiantong Satellite IoT Terminal ZS-M2
Network: Tiantong Satellite
Power:0.48W sleep mode, 1.68W work mode
Function: Remote Site Monitoring
Design:Watchdog
Positioning : GPS & BeiDou
Size : 100×60×22.6mm/3.94×2.36×0.89inch
Material:PC&ABS
Color: Black or White (Optional)
ZINSAR ZS-M2 transmits sensor data via Tiantong satellite. 0.48W sleep mode,External power supply. Perfect for oil/gas pipelines in Asia-Pacific remote areas.
PRODUCT SPECIFICATIONS:
| Parameter | Indicator Description |
| Product Name | ZINSAR Satellite IOT Terminal |
| Model No. | ZS-M2 |
| Dimension | 100×60×22.6mm |
| Network | Tiantong satellite |
| Terminal Type | IOT terminal |
| SIM Card | Tiantong Satellite : Nano SIM card. |
| Body Memory | 256MB RAM+4GB ROM |
| Antenna | External& removable |
| Body material | PC & ABS |
| Power Input | DC 12V-36V |
| Battery | Standby 0.48W, Working 1.68W |
| T-flash Card | Support TF Card capacity expansion |
| Navigation | GPS/BEIDOU |
| LED Light | 3 LED two-color indicators (GPS/BD,Satellite, Power) |
| Control Mode | Local control |
| External Interface | RS232, RS485 |
| Packing list | Host, Quike guide |
| Business Capability | AM confirmation mode（1000 Bytes/time) |
| TM Non-acknowledge mode(42 Bytes/time) |
