Tiantong Satellite Phone ZS-Q1
Network: Tiantong Satellite+4G Cellular
Function: SMS/Voice/SOS/Positioning Data
Operation:Touch screen + button
Positioning:GPS & BeiDou
Size : 210×205×70mm/8.27×8.07×2.76inch
Waterproof:IP66

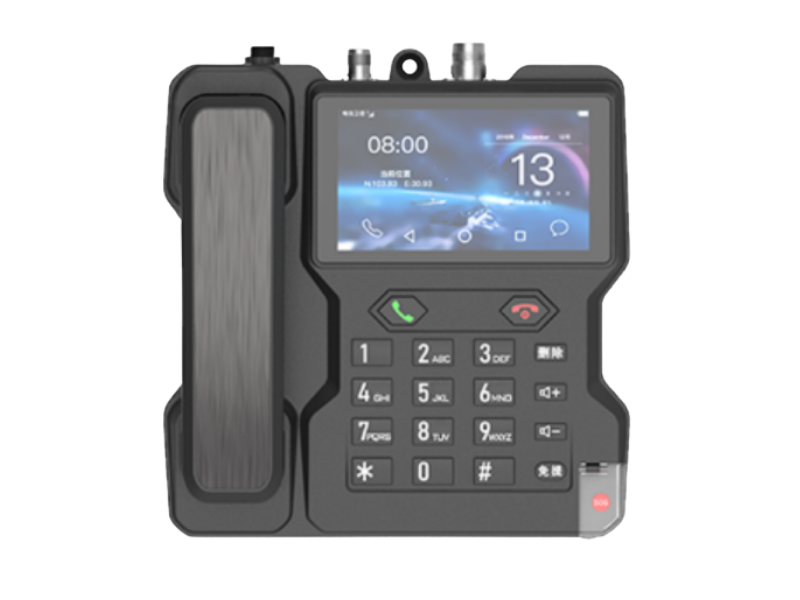

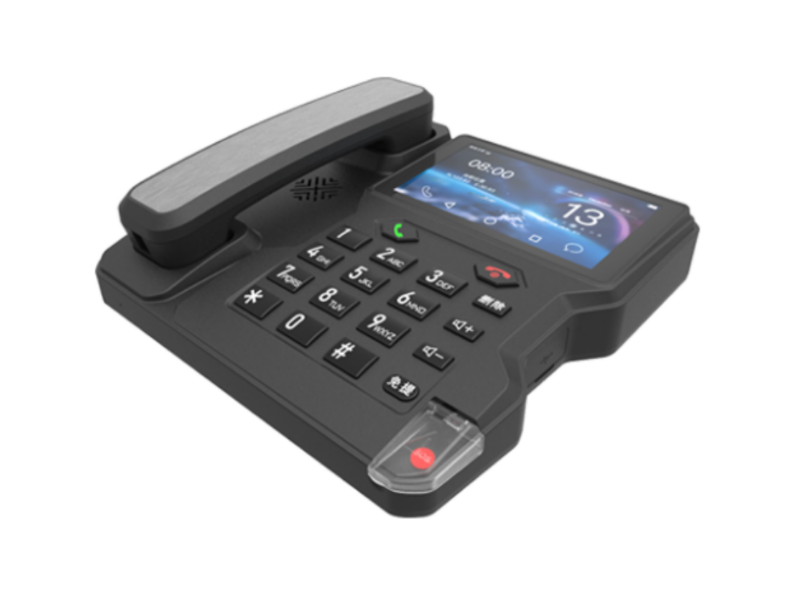

The ZINSAR ZS-Q1 is a Tiantong satellite fixed-line phone offering reliable voice communication in remote or disaster-prone areas. Suitable for rural telecom, maritime stations, and field bases.
PRODUCT SPECIFICATIONS:
| Parameter | Indicator Description |
| Product Name | ZINSAR Satellite Phone |
| Model No. | ZS-Q1 |
| Dimension | 210×205×70mm |
| Network | Tiantong satellite and Cellular 4G |
| IP Level | Indoor main body: IP66, Outdoor antenna:IP67 |
| Card Type | Nano SIM card(4G, Tiantong), TF card |
| Body Memory | 2GB RAM+16GB ROM, support TF card expansion |
| Battery Capacity | Built-in battery 8000mAh |
| Data Interface | Type-C |
| Power Input | DC 12V-36V |
| Antenna Interface | Tiantong Satellite, Beidou |
| Operating Temperature | -25˚ C ~ +55˚ C |
| Storage Temperature | -40˚ C ~ +70˚ C |
| Power Consumption | Standby 2.76W, Working 8.16W |
| Packing List | Terminal-1, Receiver-1, Antenna-1, Power Supply-1, RF cable-2, Quick Guide, Install Accessories |
| Business Capability | Voice call, SMS, Data, One click SOS |
