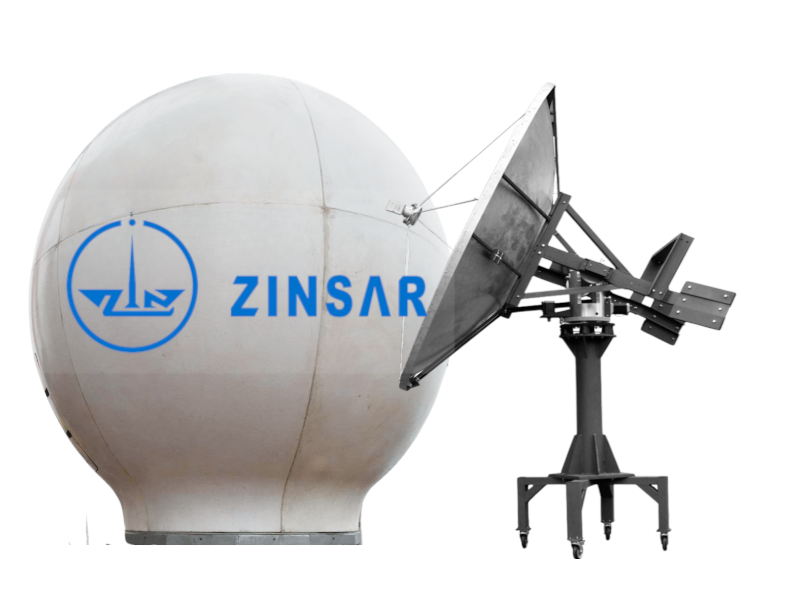

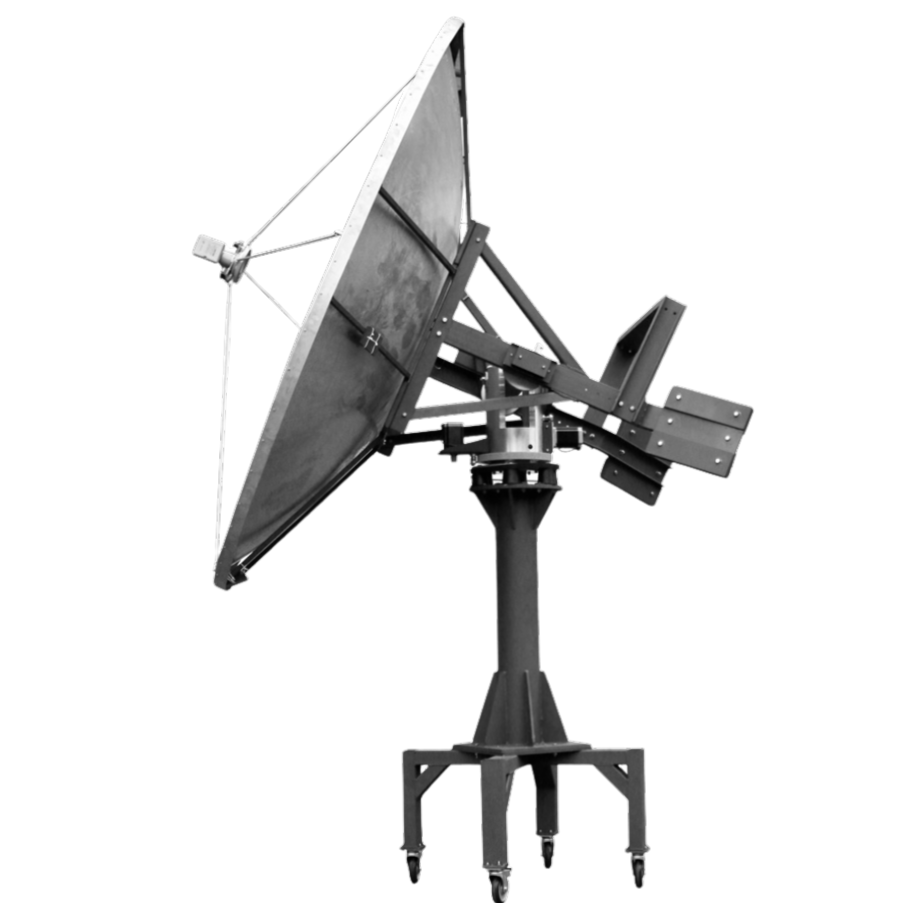

Maritime VSAT 2.4m ZV24-Pro
Dish size:240cm
Band:Ku-band or C-band
Waterproof
High-Gain
Reliable
Professional-grade ZV24-Pro 240cm marine antenna with military-grade corrosion protection. Optimized for Ku-band or C-band, ideal for offshore platform operations.
| Engineering specifications | Working Environment |
| Martime VSAT 240cm Dish | Operating Temperature:-20° ~ 55°C |
| 3 axis Stablized | Humidity: Up to 100% @ 40˚C |
| AZ angle unlimited | 8W/16W/25W/40W BUC(Optional) |
| Antenna Gain TX : 49.1 dBi @ MId. Frequency (Ku-band) | Antenna Input Power:90~264V AC 47/63Hz 17A |
| Antenna Gain RX : 47.8 dBi @ MId. Frequency (Ku-band) | Gyro Interface:NMEA 0183, Synchro, Step by Step |
| Antenna Gain TX : 41.7 dBi @ Mid frq GHz(C-band) | External I/O:RS-232C, Mini-USB, Ethernet, Console |
| Antenna Gain RX : 38 dBi @ Mid frq GHz(C-band) | Input Power:100 ~ 120V AC / 200 ~ 240V AC,50/60Hz |
| Singe PLL LNB | ACU Size: 19” Rack 1U size |
| Parts warranty: 3 years | |
