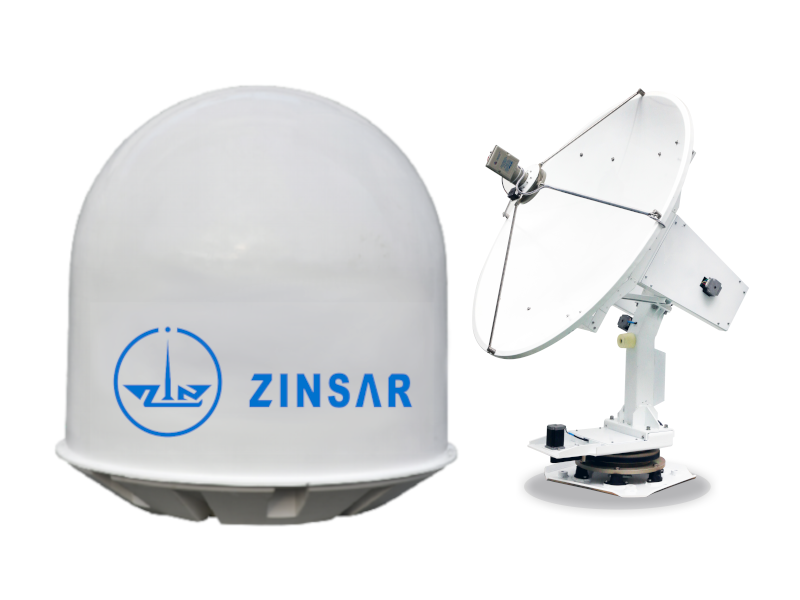

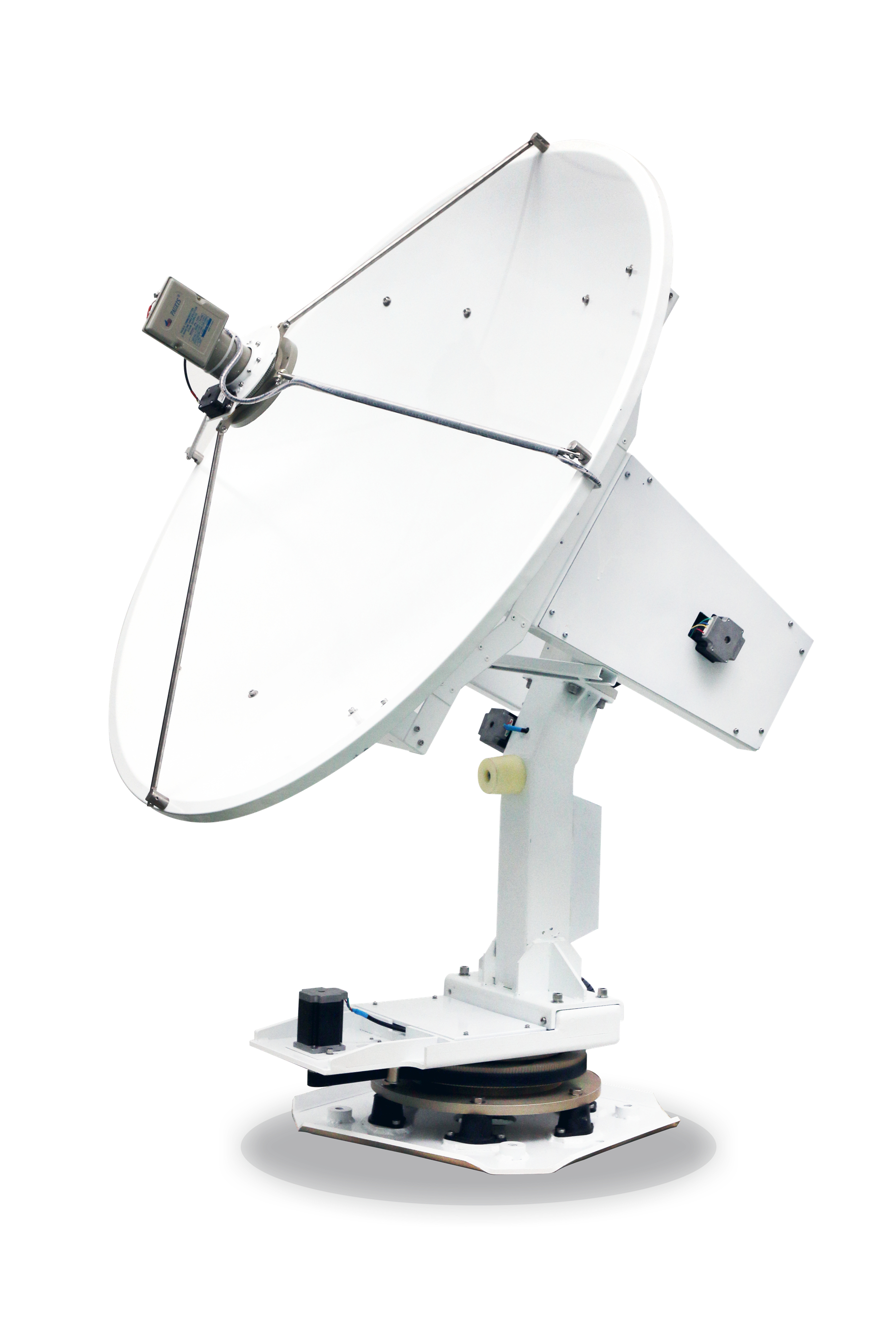

Maritime VSAT 1.2m ZV12-Pro
Dish size:120cm
Band:Ku-band
Waterproof
High-Gain
Reliable
Professional-grade ZV12-Pro 120cm marine antenna with military-grade corrosion protection. Optimized for Ku-band, ideal for commercial vessels and offshore platform operations.
| Engineering specifications | Working Environment |
| Martime VSAT 120cm Dish | Operating Temperature:-20° ~ 55°C |
| 3 axis Stablized | Humidity: Up to 100% @ 40˚C |
| AZ angle unlimited | 6W/8W/16W/25W/40W BUC(Optional) |
| Rx Frequency:10.70 ~ 12.75 GHz | Antenna Input Power TX: 48V DC 3.2A |
| Tx Frequency:13.75 ~ 14.5 GHz | Antenna Input Power RX: 48V DC 4.18A |
| Antenna Gain TX : 42.87 dBi @ 14.25 GHz | ACU Output Power: 48V DC |
| Antenna Gain RX : 40.95 dBi @ 11.75 GHz | Gyro Interface:NMEA 0183, Synchro, Step by Step |
| Singe PLL LNB/Universal LNB(optional) | ACU Size: 19” Rack 1U size |
| Parts warranty: 3 years | |
